Mag Drive Line
Leak-Free Performance Up To 16 Bar
Made in Europe & Asia
The IMO® Mag Drive Line is a good choice if you want to go for a leak- and trouble-free operation. Innovative technology featuring magnetic couplings drastically reduces wear as well as making oil leakage history. The three-screw technology provides smooth, low pulsation pumping while offering extreme durability compared to other pump technologies.
The special design of the screws creates sealed chambers that precisely direct the liquid flow from the suction to the discharge side. Typical applications include the lubrication of machinery such as diesel engines, gearboxes, turbines or paper machines, as well as the supply, transfer or circulation of fuels in tank farms or for diesel engines, separators or burners.
Consistent & Low Pulsation
with extreme durability
and high efficiency
Leak-Free
Oil leaks are gone, and you’re left with reliable, worry-free performance
Extreme Duty
The optimal solution for heavy fuel oil or low sulphur fuel oil
Easy Upgrade
Drop-in replacement with your current IMO pump
Keeps Engine Rooms Clean & Saves Money
With the IMO® OptiLine series, there is no shaft extending into the external environment at all. Instead the power from the motor is transmitted via permanent magnets leaving the pumping chamber completely sealed off. The absence of mechanical seals means no leakage. There is no need for cleaning engine rooms of oil from shaft seal lubrication or for replacing worn out seals. Once installed, the IMO® OptiLine pump will keep pumping for years with practically no associated costs.
Ready For The Future
IMO® OptiLine pumps meet requirements for fuel oils regarding low viscosity (down to 1.4 cSt) according to ISO 8217:2005 and low sulfur (0.1 %) as stated in EU/SECA 2005-33-EC. All while maintaining the same high efficiency.
Three-Screw Pumps
The Superior Pumping Technology
Discover our three-screw pumps - the clear choice for superior performance and versatility. The unique design with three interlocking spindles provides an extremely efficient and smooth flow, resulting in impressive overall efficiency.
In addition to excellent controllability, the self-priming pumps offer minimal pulsation and remarkably quiet operation, even at high discharge pressures.
Our three-screw pumps are true all-rounders, capable of handling a wide range of fluids of varying viscosities - from low-viscosity fluids to highly viscous substances. It’s robust design and the high wear resistance of the spindles ensure reliability and long life, making them the ideal choice for critical applications in a variety of industries.
| Series | Specifications | Capacity [l/min] |
Max. Inlet Pressure [bar] |
Max. Outlet Pressure [bar] |
Max. Differential Pressure [bar] |
Max. Fluid Temperature [°C] |
Viscosity Range [mm²/s] |
|---|---|---|---|---|---|---|---|
| OptiLine ACE | - | 10-180 | 7 | 16 | 16 | 180 | 1.4-1,500 |

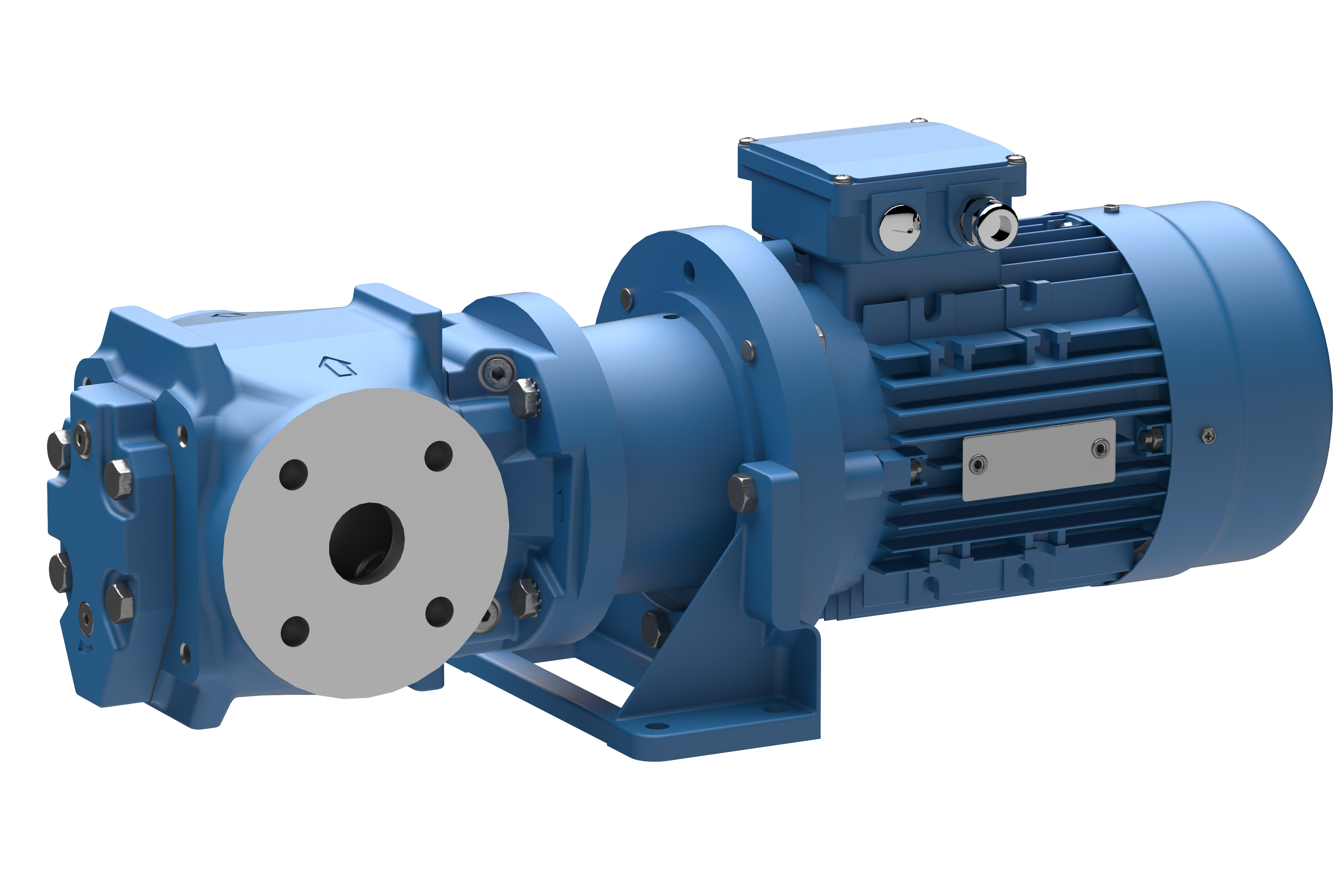

| OptiLine LPE | Inline | 15-185 | 7 | 16 | 16 | 180 | 1.4-1,500 |
| OptiLine ACG | Inline | 80-1,200 | 15 | 16 | 16 | 180 | 1.5-1,500 |
