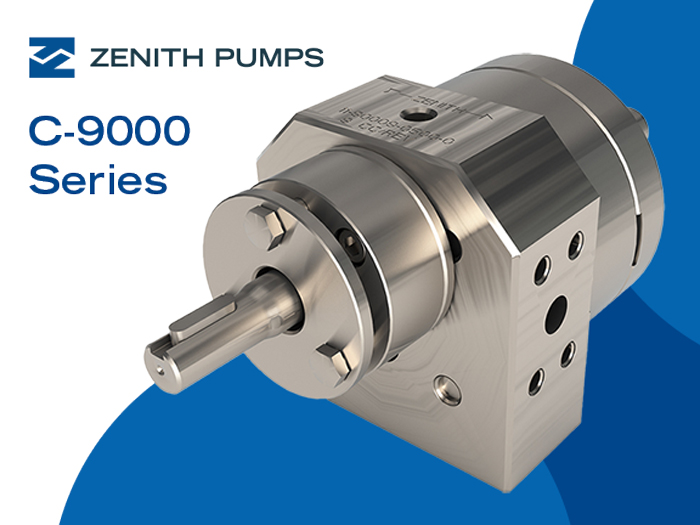

ZENITH C-9000 SERIES PUMP
MFG in Monroe, NC USA
The Zenith C-9000 Series metering gear pump is the industry standard for true precision metering in challenging applications across a wide range of industrial processes. The series also supports full Clean-in-Place (CIP) capability without pump removal. By remaining in place during sanitation cycles, it minimizes downtime, reduces manual intervention, and maintains high-accuracy metering performance.
- Stable, repeatable flows are assured under varying conditions of temperature, viscosity and pressure.
- Unique design offers virtually pulseless flow without valves or flexible elements that add complexities, increase cost and hinder performance.
- A variety of pump heads and drive combinations are pre-configured to provide you a range of standard options.
- Unparalleled mechanical precision, combined with closed-loop accuracy, ensures exact volume per revolution without expensive flow meters.
- Only three moving parts and hardened abrasion resistant materials provide excellent wear, corrosion and self-lubricating performance.
- Years of practical application experience, backed by a technical staff with a variety of technical credentials, eliminates the guesswork.
Product Model: Zenith C-9000 Series
- Typical Service: Corrosive / Poor Lubricity
- Materials: 316 Stainless Steel
- Outlet Pressure: Up to 1,000 psi (70 bar)
- Max. Operating Temperature: 350 °F
- Flow Rate: Up to 9,000 cc/min
- Fluid Properties: Poor
Lubricity: Good
Compatibility: Excellent Corrosive
Viscosity: 0.3 cps or greater - Seals: Single Mechanical, Double Lip, Magnetic
- Clean-in-Place: Yes
PRECISION PUMPING BUILT FOR CIP PROCESSES
Zenith is known for its precision gear pumps which are widely used by general industrial, food and beverage and medical manufacturers. The C-9000 series provides additional benefits by supporting CIP processes. Leaving the gear pump in place during the cleaning process allows customers to save time by avoiding manual cleaning of the pump.
Clean-In-Place for C-9000 Series
